Bluetooth Low Energy (BLE)

1. Learning Outcomes

Distinguish Bluetooth Classic from Bluetooth Low Energy (BLE) based on use case, power consumption, and communication model.
Identify the roles of central and peripheral in a BLE system.
Explain how advertising, scanning, connecting, services, and characteristics are related.
Build and flash a BLE peripheral application on the ESP32-C6.
Use a Windows PC to discover a BLE device, inspect its GATT structure, and read a characteristic value.
Assemble a complete BLE example from code segments and explain the purpose of each section.

2. Why BLE

BLE is a short-range wireless technology designed for embedded devices that need to exchange relatively small amounts of data while keeping power consumption low.

BLE is commonly used in:

wearable devices
wireless sensors
local configuration interfaces
smart locks
beacons
portable instruments
industrial handheld interfaces

For embedded systems, BLE is attractive because it allows a microcontroller to interact directly with a nearby computer, tablet, or phone without requiring a router or full IP network configuration.

3. Bluetooth Classic vs BLE

Although both belong to the Bluetooth family, they are designed for different purposes.

Feature	Bluetooth Classic	BLE
Main use	Audio, continuous streaming	Sensors, control, small data exchange
Power consumption	Higher	Lower
Communication style	More continuous	Event-based, short packets
Common embedded application	Less common	Very common
Typical examples	Speakers, headphones	Sensors, tags, wearables, smart controls

Key idea

BLE is not simply “Bluetooth but slower.” BLE is designed around discovery, attributes, and efficient short data exchanges.

4. BLE Roles

Peripheral

A peripheral is usually the embedded device. It advertises its presence and exposes data or control points.

Examples:

ESP32-C6 sensor node
wearable heart-rate monitor
BLE thermometer
smart lock

Central

A central scans for nearby peripherals, selects one, and initiates a connection.

Examples:

Windows laptop
tablet
smartphone
commissioning tool

In this class

ESP32-C6 -> Peripheral
Windows PC -> Central

5. BLE Communication Sequence

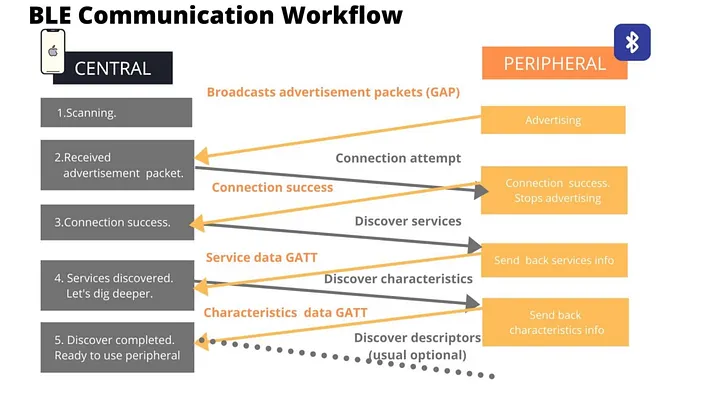

BLE WORKFLOW

A typical BLE interaction follows this order:

The peripheral starts advertising.
The central starts scanning.
The central detects the peripheral.
The central optionally connects.
The central reads, writes, or subscribes to characteristics.

Important distinction

Advertising means “I am here.”
Connection means “let us exchange structured data.”

A device can be visible in a scanner even when no connection exists.

6. UUIDs in BLE

Before studying the GATT structure in detail, it is necessary to understand how BLE identifies each element inside a device. In Bluetooth Low Energy, services, characteristics, and descriptors are identified using UUIDs.

UUID stands for Universally Unique Identifier. It is a numeric identifier that allows one BLE element to be distinguished from another. In practice, a UUID works as the unique name of a service or characteristic.

BLE uses UUIDs so that a central device can recognize what kind of data or function is being offered by a peripheral. For example, a peripheral may expose a standard battery service, a temperature characteristic, or a custom LED control characteristic. Each of these is identified by a different UUID.

Why UUIDs are important

UUIDs are important because they allow: - a central device to discover what services exist in a peripheral - an application to identify which characteristic contains the desired data - interoperability when using standardized BLE services - developers to define their own custom data models without conflicting with other devices

Types of UUIDs in BLE

BLE commonly uses two UUID formats:

16-bit UUID

These are short UUIDs typically assigned to standardized services and characteristics defined by the Bluetooth SIG.

Example: - 0x180F → Battery Service - 0x2A19 → Battery Level Characteristic

These identifiers are compact because they belong to the official Bluetooth-assigned set.

128-bit UUID

These are long UUIDs typically used for custom services and custom characteristics created by developers.

Example: - 12345678-1234-1234-1234-1234567890AB

These are used when the application needs a data structure that is not part of the official BLE standard.

Practical interpretation

When a BLE scanner or central device connects to a peripheral, it reads the available services and characteristics by their UUIDs.

If the UUID is standard, the central may already know what it means.
If the UUID is custom, the central application must be programmed to interpret it.

For example: - a standard Battery Service UUID tells the central that the peripheral exposes battery information - a custom LED Control Characteristic UUID tells the central that the device includes a user-defined function, but the meaning depends on the application design

Relationship between UUID and GATT

In the GATT model: - each service has a UUID - each characteristic has a UUID - each descriptor also has a UUID

This means that UUIDs are the identifiers that allow the central to navigate the BLE data structure.

7. GATT: The BLE Data Model

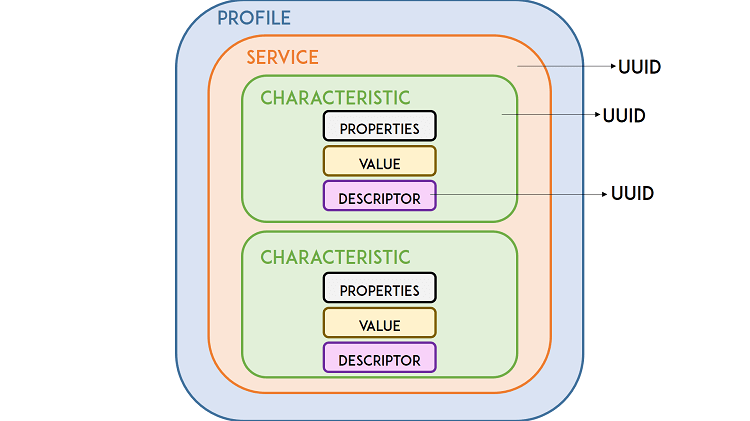

BLE Structure

Once a connection is established, BLE commonly uses the Generic Attribute Profile (GATT).

Service

A service groups related information or functionality.

Examples:

battery service
environmental sensing service
custom sensor service

Characteristic

A characteristic is a specific data item or control point inside a service.

Examples:

temperature value
device status text
LED control byte
sensor configuration parameter

Descriptor

A descriptor adds metadata or configuration related to a characteristic.

Characteristic properties

A characteristic may support one or more of the following:

Read: central reads the value
Write: central writes a value
Notify: peripheral sends updates to a subscribed central

Mental model

Service = folder
Characteristic = file
Property = allowed action on that file

8. ESP32-C6 BLE Application Structure

At the application level, a BLE peripheral on the ESP32-C6 typically contains:

BLE stack initialization
Device name configuration
GAP configuration for advertising
GATT database definition
One or more services
One or more characteristics
Event handling for connection and data access

We shoul not try to memorize every API call, but to understand:

where the BLE stack starts
where the service is defined
where the characteristic is defined
where the advertisement starts
how the PC later discovers and reads that information

9. Lab Objective

By the end of this lab, your ESP32-C6 will:

Advertise the device name ESP32C6_BLE_DEMO
Expose one custom BLE service (UUID 0x00FF)
Expose one readable characteristic (UUID 0xFF01) inside that service
Return the text "Hello from ESP32-C6" when a Windows PC reads it

You will verify all of this using Bluetooth LE Explorer on a Windows PC.

10. Hardware and Software

Hardware

ESP32-C6 DevKit
USB cable
Windows laptop or desktop with BLE support

Software

VS Code
ESP-IDF
Serial monitor
Bluetooth LE Explorer for Windows

11. Lab Code

The full code is in Full Code. Here we break it down piece by piece so you understand what each part does.

11.1 Segment 1 — Headers, tag, and constants

This first section includes the required headers and defines names and UUIDs.

#include <stdio.h>
#include <string.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_log.h"
#include "nvs_flash.h"
#include "esp_bt.h"
#include "esp_gap_ble_api.h"
#include "esp_gatts_api.h"
#include "esp_bt_main.h"
#include "esp_gatt_common_api.h"

static const char *TAG = "BLE_DEMO";

#define DEVICE_NAME              "ESP32C6_BLE_DEMO"
#define GATTS_SERVICE_UUID_TEST  0x00FF
#define GATTS_CHAR_UUID_TEST     0xFF01
#define GATTS_NUM_HANDLE_TEST    4
#define PROFILE_NUM              1
#define PROFILE_APP_IDX          0
#define ESP_APP_ID               0x55

static const char char_value[] = "Hello from ESP32-C6";

What this section does

imports BLE and system libraries
defines the device name that will appear in the scanner
defines one service UUID and one characteristic UUID
defines the text value that the PC will later read

Name	Purpose
`TAG`	Label for log messages, helps you filter output in the serial monitor
`DEVICE_NAME`	The name scanners will see when they discover your device
`GATTS_SERVICE_UUID_TEST` (`0x00FF`)	Unique identifier for our custom service
`GATTS_CHAR_UUID_TEST` (`0xFF01`)	Unique identifier for the characteristic inside the service
`GATTS_NUM_HANDLE_TEST` (`4`)	How many handle slots the BLE stack should reserve (service + characteristic + descriptor typically needs 4)
`char_value`	The actual text that gets returned when a central reads the characteristic

You don't need to memorize these UUIDs, just know that both the service and characteristic need one, and they must match what the central looks for.

11.2 Segment 2 — Advertisement data

This section defines the BLE advertisement content.This section has two structs that control advertising: what you broadcast and how you broadcast it.

static esp_ble_adv_data_t adv_data = {
    .set_scan_rsp = false,
    .include_name = true,
    .include_txpower = false,
    .min_interval = 0x20,
    .max_interval = 0x40,
    .appearance = 0x00,
    .manufacturer_len = 0,
    .p_manufacturer_data = NULL,
    .service_data_len = 0,
    .p_service_data = NULL,
    .service_uuid_len = 0,
    .p_service_uuid = NULL,
    .flag = ESP_BLE_ADV_FLAG_GEN_DISC | ESP_BLE_ADV_FLAG_BREDR_NOT_SPT,
};

static esp_ble_adv_params_t adv_params = {
    .adv_int_min = 0x20,
    .adv_int_max = 0x40,
    .adv_type = ADV_TYPE_IND,
    .own_addr_type = BLE_ADDR_TYPE_PUBLIC,
    .channel_map = ADV_CHNL_ALL,
    .adv_filter_policy = ADV_FILTER_ALLOW_SCAN_ANY_CON_ANY,
};

What this section does

configures the advertising packet
includes the device name in the advertisement
sets general discoverable mode
prepares parameters for starting BLE advertising

The two structs explained:

Struct	Role	Analogy
`adv_data` (the payload)	What bytes get broadcast, the device name, flags, and discovery mode. This is what scanners read before connecting.	The text on your shop sign
`adv_params` (radio behavior)	How often to advertise, which channels to use, and who can connect.	The brightness and placement of your sign

Key flags:

GEN_DISC = "general discoverable" any scanner can find this device
BREDR_NOT_SPT = tells scanners this is BLE only (no classic Bluetooth)

This section also declares the handle variables that the BLE stack will fill in later:

static uint16_t service_handle;
static esp_gatt_char_prop_t char_property = ESP_GATT_CHAR_PROP_BIT_READ;
static uint16_t char_handle;
static esp_gatt_if_t gatts_if_for_profile = 0;

What are "handles"? When the BLE stack creates your service and characteristic, it assigns them numeric handles — like row numbers in a database. You store them so you can refer to those items later. char_property = ESP_GATT_CHAR_PROP_BIT_READ tells the stack this characteristic is read-only.

11.3 Segment 4 — GAP event handler

This function reacts to advertising-related events. It's short but critical, it actually starts the radio broadcasting.

static void gap_event_handler(esp_gap_ble_cb_event_t event, esp_ble_gap_cb_param_t *param)
{
    switch (event) {
    case ESP_GAP_BLE_ADV_DATA_SET_COMPLETE_EVT:
        esp_ble_gap_start_advertising(&adv_params);
        break;

    case ESP_GAP_BLE_ADV_START_COMPLETE_EVT:
        if (param->adv_start_cmpl.status == ESP_BT_STATUS_SUCCESS) {
            ESP_LOGI(TAG, "Advertising started successfully");
        } else {
            ESP_LOGE(TAG, "Advertising start failed");
        }
        break;

    default:
        break;
    }
}

Workflow:

Elsewhere in the code, esp_ble_gap_config_adv_data() is called, which configures the advertising packet.
When that finishes, the stack fires ADV_DATA_SET_COMPLETE_EVT. Our handler catches it and calls esp_ble_gap_start_advertising().
When advertising actually starts, the stack fires ADV_START_COMPLETE_EVT. We log success or failure.

This is the first visible sign in your serial monitor that BLE is working. Look for "Advertising started successfully".

11.5 Segment 5 — GATT event handler

This is the biggest and most important function. It creates the service, creates the characteristic, and handles connections and disconnections.

static void gatts_profile_event_handler(esp_gatts_cb_event_t event,
                                        esp_gatt_if_t gatts_if,
                                        esp_ble_gatts_cb_param_t *param)
{
    switch (event) {
    case ESP_GATTS_REG_EVT:
        ESP_LOGI(TAG, "GATT server registered");
        gatts_if_for_profile = gatts_if;

        esp_ble_gap_set_device_name(DEVICE_NAME);
        esp_ble_gap_config_adv_data(&adv_data);

        esp_gatt_srvc_id_t service_id = {
            .is_primary = true,
            .id.inst_id = 0x00,
            .id.uuid.len = ESP_UUID_LEN_16,
            .id.uuid.uuid.uuid16 = GATTS_SERVICE_UUID_TEST,
        };

        esp_ble_gatts_create_service(gatts_if, &service_id, GATTS_NUM_HANDLE_TEST);
        break;

    case ESP_GATTS_CREATE_EVT:
        ESP_LOGI(TAG, "Service created");
        service_handle = param->create.service_handle;
        esp_ble_gatts_start_service(service_handle);

        esp_bt_uuid_t char_uuid = {
            .len = ESP_UUID_LEN_16,
            .uuid.uuid16 = GATTS_CHAR_UUID_TEST,
        };

        esp_attr_value_t char_val = {
            .attr_max_len = sizeof(char_value),
            .attr_len = strlen(char_value),
            .attr_value = (uint8_t *)char_value,
        };

        esp_ble_gatts_add_char(service_handle,
                               &char_uuid,
                               ESP_GATT_PERM_READ,
                               char_property,
                               &char_val,
                               NULL);
        break;

    case ESP_GATTS_ADD_CHAR_EVT:
        ESP_LOGI(TAG, "Characteristic added");
        char_handle = param->add_char.attr_handle;
        break;

    case ESP_GATTS_CONNECT_EVT:
        ESP_LOGI(TAG, "Central connected");
        break;

    case ESP_GATTS_DISCONNECT_EVT:
        ESP_LOGI(TAG, "Central disconnected, restarting advertising");
        esp_ble_gap_start_advertising(&adv_params);
        break;

    default:
        break;
    }
}

What this section does

registers the device name
creates the BLE service
starts the service
creates one readable characteristic
restarts advertising after a disconnect

The event chain

REG_EVT                    CREATE_EVT                ADD_CHAR_EVT
  │                           │                          │
  ├─ Set device name          ├─ Store service handle    └─ Store char handle
  ├─ Configure adv data       ├─ Start the service          (Done)
  └─ Create service ──────►   └─ Add characteristic ──►

Why restart advertising on disconnect? When a central connects, the ESP32 stops advertising (it's busy with the connection). When the central disconnects, you need to explicitly restart advertising so other devices can find your ESP32 again. Without this, the device goes "invisible" after the first disconnection.

Global Dispatcher

ESP-IDF uses a two-layer callback pattern. This global handler receives all GATT events and forwards them to your profile handler:

static void gatts_event_handler(esp_gatts_cb_event_t event,
                                esp_gatt_if_t gatts_if,
                                esp_ble_gatts_cb_param_t *param)
{
    if (event == ESP_GATTS_REG_EVT) {
        if (param->reg.status == ESP_GATT_OK) {
            gatts_if_for_profile = gatts_if;
        } else {
            ESP_LOGE(TAG, "GATT app register failed: %d", param->reg.status);
            return;
        }
    }

    gatts_profile_event_handler(event, gatts_if, param);
}

What this section does

receives GATT events from the BLE stack
forwards them to the profile-specific event handler

11.6 Segment 6 — `app_main()` initialization

This final section initializes NVS, Bluetooth, BLE callbacks, and the GATT server application.

void app_main(void)
{
    esp_err_t ret;

    ret = nvs_flash_init();
    if (ret == ESP_ERR_NVS_NO_FREE_PAGES || ret == ESP_ERR_NVS_NEW_VERSION_FOUND) {
        ESP_ERROR_CHECK(nvs_flash_erase());
        ret = nvs_flash_init();
    }
    ESP_ERROR_CHECK(ret);

    ESP_ERROR_CHECK(esp_bt_controller_mem_release(ESP_BT_MODE_CLASSIC_BT));

    esp_bt_controller_config_t bt_cfg = BT_CONTROLLER_INIT_CONFIG_DEFAULT();
    ESP_ERROR_CHECK(esp_bt_controller_init(&bt_cfg));
    ESP_ERROR_CHECK(esp_bt_controller_enable(ESP_BT_MODE_BLE));

    ESP_ERROR_CHECK(esp_bluedroid_init());
    ESP_ERROR_CHECK(esp_bluedroid_enable());

    ESP_ERROR_CHECK(esp_ble_gap_register_callback(gap_event_handler));
    ESP_ERROR_CHECK(esp_ble_gatts_register_callback(gatts_event_handler));
    ESP_ERROR_CHECK(esp_ble_gatts_app_register(ESP_APP_ID));

    ESP_ERROR_CHECK(esp_ble_gatt_set_local_mtu(500));

    ESP_LOGI(TAG, "BLE initialization complete");
}

What this section does

initializes non-volatile storage
enables the BLE controller
initializes the Bluetooth stack
registers GAP and GATT callbacks
registers the GATT application
finishes BLE startup

12. Complete Lab Code

#include <stdio.h>
#include <string.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "esp_log.h"
#include "nvs_flash.h"
#include "esp_bt.h"
#include "esp_gap_ble_api.h"
#include "esp_gatts_api.h"
#include "esp_bt_main.h"
#include "esp_gatt_common_api.h"

static const char *TAG = "BLE_DEMO";

#define DEVICE_NAME              "ESP32C6_BLE_DEMO"
#define GATTS_SERVICE_UUID_TEST  0x00FF
#define GATTS_CHAR_UUID_TEST     0xFF01
#define GATTS_NUM_HANDLE_TEST    4
#define PROFILE_NUM              1
#define PROFILE_APP_IDX          0
#define ESP_APP_ID               0x55

static const char char_value[] = "Hello from ESP32-C6";

static uint16_t service_handle;
static esp_gatt_char_prop_t char_property = ESP_GATT_CHAR_PROP_BIT_READ;
static uint16_t char_handle;
static esp_gatt_if_t gatts_if_for_profile = 0;

static esp_ble_adv_data_t adv_data = {
    .set_scan_rsp = false,
    .include_name = true,
    .include_txpower = false,
    .min_interval = 0x20,
    .max_interval = 0x40,
    .appearance = 0x00,
    .manufacturer_len = 0,
    .p_manufacturer_data = NULL,
    .service_data_len = 0,
    .p_service_data = NULL,
    .service_uuid_len = 0,
    .p_service_uuid = NULL,
    .flag = ESP_BLE_ADV_FLAG_GEN_DISC | ESP_BLE_ADV_FLAG_BREDR_NOT_SPT,
};

static esp_ble_adv_params_t adv_params = {
    .adv_int_min = 0x20,
    .adv_int_max = 0x40,
    .adv_type = ADV_TYPE_IND,
    .own_addr_type = BLE_ADDR_TYPE_PUBLIC,
    .channel_map = ADV_CHNL_ALL,
    .adv_filter_policy = ADV_FILTER_ALLOW_SCAN_ANY_CON_ANY,
};

static void gap_event_handler(esp_gap_ble_cb_event_t event, esp_ble_gap_cb_param_t *param)
{
    switch (event) {
    case ESP_GAP_BLE_ADV_DATA_SET_COMPLETE_EVT:
        esp_ble_gap_start_advertising(&adv_params);
        break;

    case ESP_GAP_BLE_ADV_START_COMPLETE_EVT:
        if (param->adv_start_cmpl.status == ESP_BT_STATUS_SUCCESS) {
            ESP_LOGI(TAG, "Advertising started successfully");
        } else {
            ESP_LOGE(TAG, "Advertising start failed");
        }
        break;

    default:
        break;
    }
}

static void gatts_profile_event_handler(esp_gatts_cb_event_t event,
                                        esp_gatt_if_t gatts_if,
                                        esp_ble_gatts_cb_param_t *param)
{
    switch (event) {
    case ESP_GATTS_REG_EVT:
        ESP_LOGI(TAG, "GATT server registered");
        gatts_if_for_profile = gatts_if;

        esp_ble_gap_set_device_name(DEVICE_NAME);
        esp_ble_gap_config_adv_data(&adv_data);

        esp_gatt_srvc_id_t service_id = {
            .is_primary = true,
            .id.inst_id = 0x00,
            .id.uuid.len = ESP_UUID_LEN_16,
            .id.uuid.uuid.uuid16 = GATTS_SERVICE_UUID_TEST,
        };

        esp_ble_gatts_create_service(gatts_if, &service_id, GATTS_NUM_HANDLE_TEST);
        break;

    case ESP_GATTS_CREATE_EVT:
        ESP_LOGI(TAG, "Service created");
        service_handle = param->create.service_handle;
        esp_ble_gatts_start_service(service_handle);

        esp_bt_uuid_t char_uuid = {
            .len = ESP_UUID_LEN_16,
            .uuid.uuid16 = GATTS_CHAR_UUID_TEST,
        };

        esp_attr_value_t char_val = {
            .attr_max_len = sizeof(char_value),
            .attr_len = strlen(char_value),
            .attr_value = (uint8_t *)char_value,
        };

        esp_attr_control_t char_control = {
            .auto_rsp = ESP_GATT_AUTO_RSP,
        };

        esp_ble_gatts_add_char(service_handle,
                            &char_uuid,
                            ESP_GATT_PERM_READ,
                            char_property,
                            &char_val,
                            &char_control);
        break;

    case ESP_GATTS_ADD_CHAR_EVT:
        ESP_LOGI(TAG, "Characteristic added");
        char_handle = param->add_char.attr_handle;
        break;

    case ESP_GATTS_CONNECT_EVT:
        ESP_LOGI(TAG, "Central connected");
        break;

    case ESP_GATTS_DISCONNECT_EVT:
        ESP_LOGI(TAG, "Central disconnected, restarting advertising");
        esp_ble_gap_start_advertising(&adv_params);
        break;

    default:
        break;
    }
}

static void gatts_event_handler(esp_gatts_cb_event_t event,
                                esp_gatt_if_t gatts_if,
                                esp_ble_gatts_cb_param_t *param)
{
    if (event == ESP_GATTS_REG_EVT) {
        if (param->reg.status == ESP_GATT_OK) {
            gatts_if_for_profile = gatts_if;
        } else {
            ESP_LOGE(TAG, "GATT app register failed: %d", param->reg.status);
            return;
        }
    }

    gatts_profile_event_handler(event, gatts_if, param);
}

void app_main(void)
{
    esp_err_t ret;

    ret = nvs_flash_init();
    if (ret == ESP_ERR_NVS_NO_FREE_PAGES || ret == ESP_ERR_NVS_NEW_VERSION_FOUND) {
        ESP_ERROR_CHECK(nvs_flash_erase());
        ret = nvs_flash_init();
    }
    ESP_ERROR_CHECK(ret);

    ESP_ERROR_CHECK(esp_bt_controller_mem_release(ESP_BT_MODE_CLASSIC_BT));

    esp_bt_controller_config_t bt_cfg = BT_CONTROLLER_INIT_CONFIG_DEFAULT();
    ESP_ERROR_CHECK(esp_bt_controller_init(&bt_cfg));
    ESP_ERROR_CHECK(esp_bt_controller_enable(ESP_BT_MODE_BLE));

    ESP_ERROR_CHECK(esp_bluedroid_init());
    ESP_ERROR_CHECK(esp_bluedroid_enable());

    ESP_ERROR_CHECK(esp_ble_gap_register_callback(gap_event_handler));
    ESP_ERROR_CHECK(esp_ble_gatts_register_callback(gatts_event_handler));
    ESP_ERROR_CHECK(esp_ble_gatts_app_register(ESP_APP_ID));

    ESP_ERROR_CHECK(esp_ble_gatt_set_local_mtu(500));

    ESP_LOGI(TAG, "BLE initialization complete");
}

13. Lab Procedure

13.1 Flashing

Create or open the ESP-IDF project.
Replace main.c with the complete code.
Build and flash the project to the ESP32-C6.
Open the serial monitor.
Confirm that the log shows BLE initialization and advertising.

13.2 Windows PC Discovery

Open Bluetooth LE Explorer on your Windows PC.
Click Start to begin scanning for BLE devices.
Look for ESP32C6_BLE_DEMO in the device list.
Click on the device to connect and explore services.
Find the custom service with UUID 0x00FF.
Inside the service, find the characteristic with UUID 0xFF01.
Click Read on the characteristic.
Confirm the value is "Hello from ESP32-C6".

14. Verification Checkpoints

A correct lab result must include all of the following:

the ESP32-C6 boots correctly
BLE initializes without errors
advertising starts successfully
the Windows PC discovers the device
the custom service appears in Bluetooth LE Explorer
the readable characteristic appears correctly
the characteristic value is read successfully

15. Evidence Required in the Technical Log

Each team must document the following:

Screenshot of the serial monitor showing BLE startup messages.
Screenshot of Bluetooth LE Explorer showing the discovered device.
Screenshot showing the service and characteristic.
Screenshot or note of the characteristic value read result.
Brief written explanation (a few sentences each) of:
What is the difference between a central and a peripheral?
What is the difference between a service and a characteristic?
Why is BLE suitable for this type of application?

Bluetooth Low Energy (BLE)

1. Learning Outcomes

2. Why BLE

3. Bluetooth Classic vs BLE

Key idea

4. BLE Roles

Peripheral

Central

In this class

5. BLE Communication Sequence

Important distinction

6. UUIDs in BLE

Why UUIDs are important

Types of UUIDs in BLE

16-bit UUID

128-bit UUID

Practical interpretation

Relationship between UUID and GATT

7. GATT: The BLE Data Model

Service

Characteristic

Descriptor

Characteristic properties

Mental model

8. ESP32-C6 BLE Application Structure

9. Lab Objective

10. Hardware and Software

Hardware

Software

11. Lab Code

11.1 Segment 1 — Headers, tag, and constants

What this section does

11.2 Segment 2 — Advertisement data

What this section does

11.3 Segment 4 — GAP event handler

11.5 Segment 5 — GATT event handler

What this section does

Global Dispatcher

What this section does

11.6 Segment 6 — app_main() initialization

What this section does

12. Complete Lab Code

13. Lab Procedure

13.1 Flashing

13.2 Windows PC Discovery

14. Verification Checkpoints

15. Evidence Required in the Technical Log

11.6 Segment 6 — `app_main()` initialization
